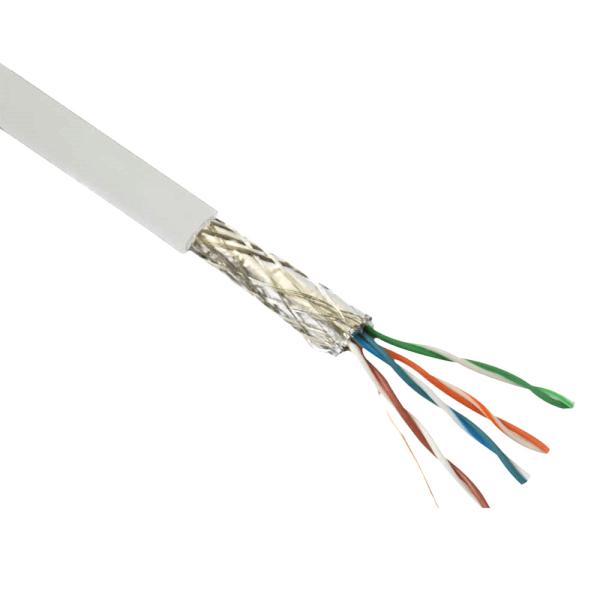

305m CCA Line Category 5e Ethernet Cable 24awg Standard

  • 1
  • 2

Brand Name : Aitong

Model Number : cat-5e-UTP

Certification : ISO9001

Place of Origin : China

MOQ : Communication

Price : As required

Payment Terms : L/C, D/A, D/P, D/P, T/T, Western Union, MoneyGram

Supply Ability : 200 winding box day

Delivery Time : 5-8 work days

Packaging Details : 425mm*425mm*225mm

Origin : sichuan,china

Product name : Indoor generic cabling (FTP) category 305m CCA line 24awg standard Ethernet Cat5e Lan cable

model : FTP category 5 indoor cable

Brand : Aitong

Minimum order quantity : 100 pieces

Packing details : 305 M / winding box

Delivery time : 7-15 working days

term of payment : Letter of credit, telegraphic transfer

Supply capacity : 50000 M / day

Contact Now

Indoor generic cabling (FTP) category 305m CCA line 24awg standard Ethernet Cat5e Lan cable

▌ Product description

  • CCA and 24AWG
  • Eco-friendly,pollution-free and new materials selected.Promise new material only.
  • Insulation: Solid HDPE;
  • Eco-friendly PVC/LZSH Jacket , high-temperature resistance,long working life.

▌Construction

Connectix Cat

  • Impedance: 100± 15(ohms).
  • Rated Temperture: 75º C
  • DC Resistance unbalance(%): Max2.5
  • DC Resistance 20º C: 8.4(Ohms/100m)
  • Pair-to-Ground Capacitance Unbalance: 330(Pf/100m)
  • Transfer Impendance: Max 10 mohms/m@100MHz.
  • Installation Resistance: >5000MΩ *KM
  • Dielectric strength: DC 2500V 2S

▌Appliacation

  • Exceeds ANSI/TIA-568B. 2 and ISO 11801 2nd Edition Class E Category 5e channel standards.
  • Exceed requirements of ANSI/TIA-568B. 2 and IEC 61156-5 Category 5e Component standards;
  • Meets requirements of IEEE 802.3af and IEEE 802.3at for PoE applications.
  • Foil shield reduces ingress of EMI interference to ensure cable performance at high frequency levels.
  • Length cable marking enable easy identification of remaining cable which reduces installation time and cable scrap.
  • Color Availability: Additional cable colors available.

▌Parameter

onstruction Indoor generic cabling (FTP) category 305m CCA line 24awg standard Ethernet Cat5e Lan cable
Operating temperature (T-T) -20˚C to +70˚C
Conforms to IEEE 802.3: 10Base-T, 100Base-T, 1000 Base-T standards; ANSI/TIA 568C; ISO/IEC 11801; RoHS2002/95/EC
Fire Rating Cca,s1.d0,a1
Inner Conductor 24 AWG plain copper
Insulation High density polyethylene
Colour Code Pair 1: White/Blue-Blue/White Pair 2: White/Orange-Orange/White Pair 3: White/Green-Green/White Pair 4: White/Brown-Brown/White
Jacket FR-LSZH
Overall Diameter 5.4 +/- 0.4 mm
Min. Bending Radius Installation 44mm
Min. Bending Radius Installed 22mm
DC Resistance < 9.4 Ω/100 m
Velocity Ratio 69%
Installation temperature (T-T) 0˚C to +50˚C

Mechanical Properties

Bending radius Installation 8 x D
Installed 4 x D
Temperature range During operation -40°C to + 85°C
During installation -15°C to + 50°C
Fire load 4 pair 515 MJ/km
Maximum tensile load During operation No load
During installation 130 N

Electrical Properties at 20°C

DC loop resistance £ 158 Ω/km
Resistance unbalance £ 2%
Insulation resistance (500 V) ³ 5000 MΩxkm
Capacitance at 800 Hz Nom. 43 nF/km
Capacitance unbalance (pair to ground) £ 1500 pF/km
Mean Characteristic impedance @ 100 MHz) 100 ± 5 Ω
Nominal velocity of propagation 0,75c
Propagation delay £ 450 ns/100 m
Delay skew £ 15 ns/100 m
Transfer impedance at 1 MHz £ 10 mΩ /m
at 10 MHz £ 8 mΩ /m
at 30 MHz £ 10 mΩ /m
Coupling attenuation ³ 85 dB
Segregation classification Acc. to EN 50174-2 “D”

▌Nominal Transmission characteristics at 20°C

F

(MHz)

Attenuation

(dB/100m)

NEXT

(dB)

ACR

(dB/100m)

Return loss

(dB)

PS-NEXT

(dB)

PS-ACR

(dB/100m)

ELFEXT

(dB/100m)

PS-ELFEXT

(dB/100m)
1 2,1 90 88 87 85 85 82
4 4,0 90 86 27 87 83 85 82
10 6,3 90 84 30 87 81 79 76
16 8,0 90 82 30 87 79 75 72
20 9,0 90 81 30 87 78 73 70
31.25 11,4 90 79 30 87 76 69 66
62.50 16,5 86 70 30 83 67 63 60
100 21,3 83 62 30 80 59 59 56
155.00 24,2 81 57 26 78 54 57 54
200.00 31,5 78 47 25 75 44 53 50
250.00 35,8 77 41 25 74 38 51 48
300.00 47,1 73 26 23 70 23 47 44
600.00 60,1 71 11 20 68 8 44 41

▌Product mix

305m CCA Line Category 5e Ethernet Cable 24awg Standard 305m CCA Line Category 5e Ethernet Cable 24awg Standard

▌Panking

　305m CCA Line Category 5e Ethernet Cable 24awg Standard 　305m CCA Line Category 5e Ethernet Cable 24awg Standard Cable weight Gross weight
9.3kg 10kg
Box size (CM) Specifications
21.5×35×35 305m/box

▌Application scenario

305m CCA Line Category 5e Ethernet Cable 24awg Standard 305m CCA Line Category 5e Ethernet Cable 24awg Standard 305m CCA Line Category 5e Ethernet Cable 24awg Standard 305m CCA Line Category 5e Ethernet Cable 24awg Standard
Network TV Desktop computer Notebook computer Printer
305m CCA Line Category 5e Ethernet Cable 24awg Standard 305m CCA Line Category 5e Ethernet Cable 24awg Standard 305m CCA Line Category 5e Ethernet Cable 24awg Standard 305m CCA Line Category 5e Ethernet Cable 24awg Standard
Router Set top box Cabinet Camera

▌Frequently asked question (FAQ)

Q: Are you a cable and wire manufacturer?
— Yes, we are a professional wire and cable manufacturer.

Q: Can you offer a discount on cables?
— The price is negotiable according to the specification and quantity.

Q: Can you offer FREE samples?
— Yes,FREE samples are available, you just take care of the freight fee.

Q: What about your MOQ?
— Usually, our MOQ is 5000 Meters, but we’ d love to talk about your MOQ.

Q: Do you accept customize cables?
— Yes, we are more than happy to make OEM and ODM for you.

Q: How long is the lead time?
— Usually it’s about 10-14 days.

305m CCA Line Category 5e Ethernet Cable 24awg Standard
